Jagwire Road Elite Link Brake Cable Kit

Seen on the best bikes in the world, Jagwire cable kits are intuitive and aesthetically superior.

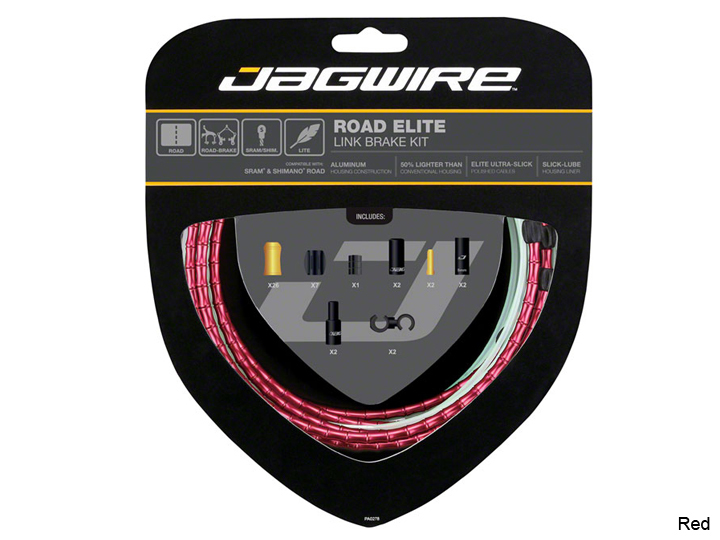

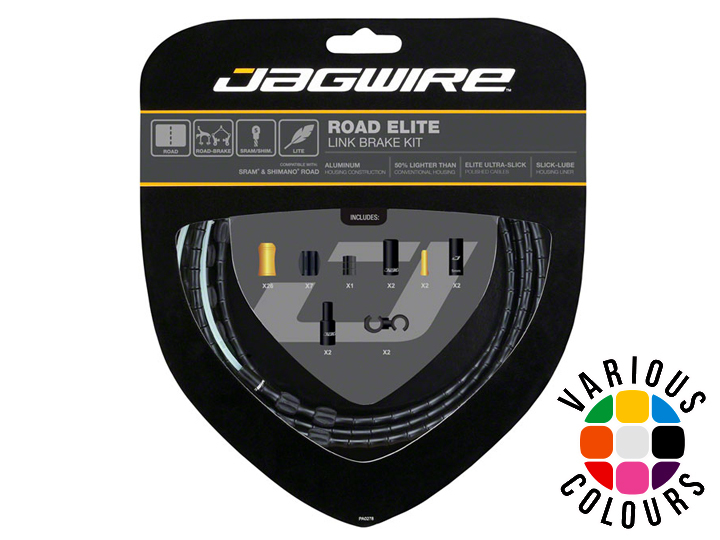

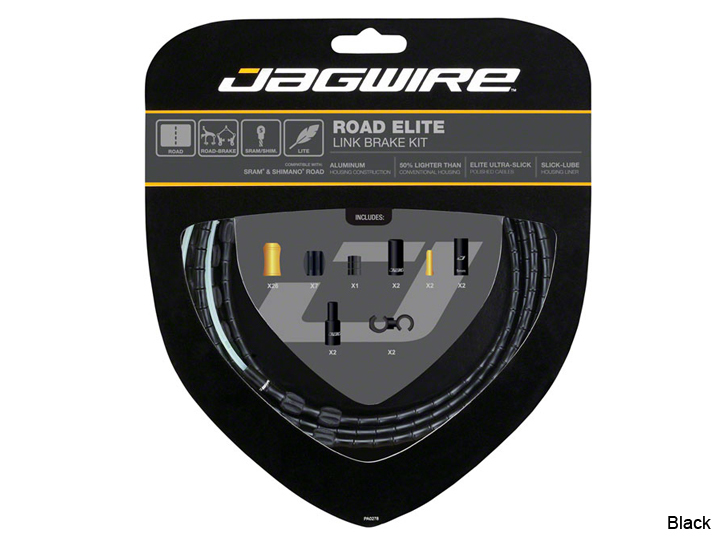

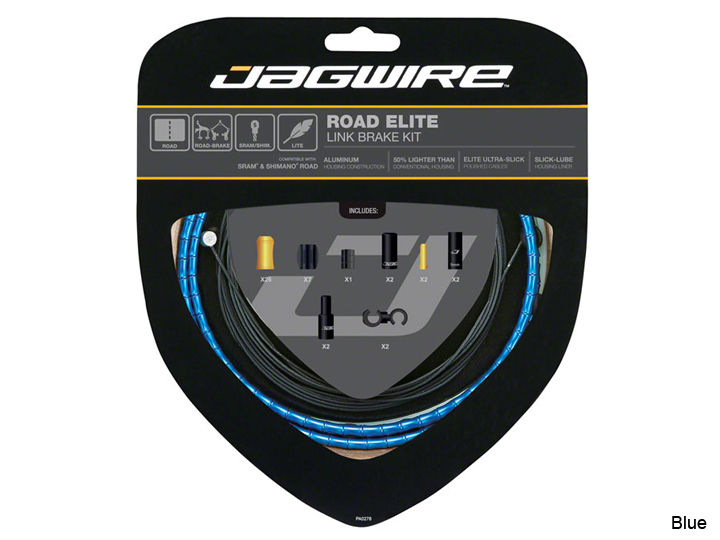

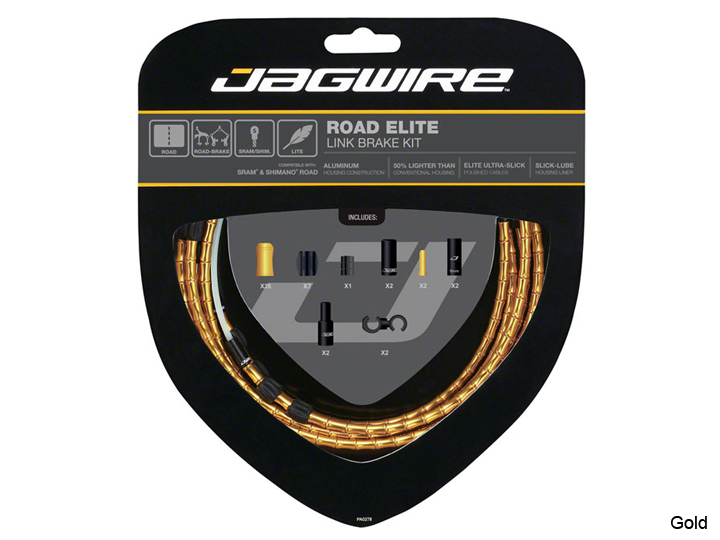

Jagwire Elite Link Brake Kits are the ultimate combination of durability and attention-grabbing looks. Available in six eye-catching colors and for road or mountain bikes, they improve any bike’s performance and appearance.

The Elite Link housing uses a series of aluminum links to provide a compressionless system for better braking performance with enhanced modulation. But unlike other compressionless housing, its flexibility allows for tight bends without kinking. It’s also much lighter than traditional housing while being more durable. Combine these benefits with Elite, ultra-slick polished cables and Slick-Lube liners, and you’ve got the best of performance and style.

Technologies

Alloy – interconnecting alloy links around Slick-Lube liners

Aluminum, Lightweight, Lubricated

An alternative to traditional compressionless housing, this system is made of nesting alloy pieces that protect the liner. Although this housing is typically more expensive, it has several advantages including increased flexibility, reduced weight and increased durability. Both shift and brake housings use identical Slick-Lube liners and interconnecting alloy pieces.

STS-EL – pre-stretched, highly polished, uncoated slick stainless steel spiral-bound cables

Polished Ultra-Slick Stainless Steel

These ultra-slick stainless cables deliver the ultimate low-friction performance. Rather than using a coating, the Elite Ultra-Slick cables are polished to an even higher level than our Pro Slick cables. Compatible with any housing and lubricant, these Elite level ca

Features

Precise, compressionless braking performance combined with extreme flexibility
Each kit comes with links pre-installed on housing segments making setup quick and simple
Durable aluminum housing won’t kink or rust and is 50% weight savings compared to traditional brake housing
Ultra-slick polished inner cables minimize system friction
Bikes with continuous housing, disc brakes, and/or extra-large frames may need additional links and/or liners; service parts are available separately

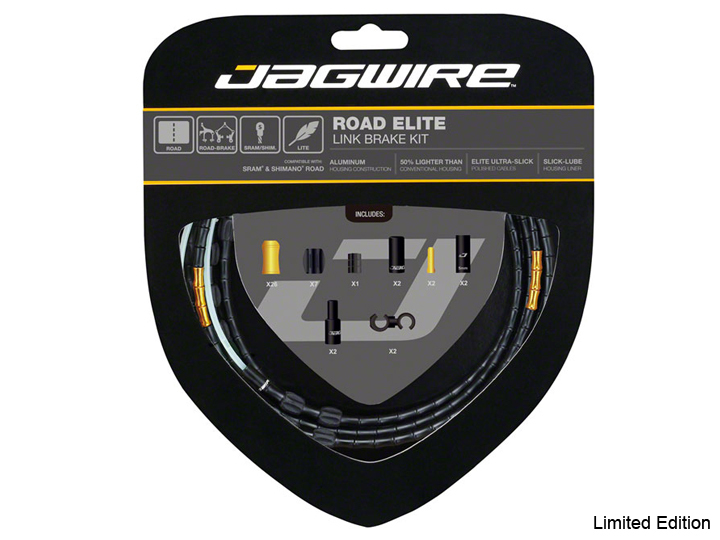

Limited edition gray color is available for 2021

Specifications

What’s in the Box?

1x 400mm Link Segment on 2000mm Lubed Liner
1x 400mm Link Segment on 610mm Lubed Liner
1x 240mm Link Segment on 710mm Lubed Liner
1x 850mm Teflon-Coated Front Brake Inner Cable
1x 1650mm Teflon-Coated Rear Brake Inner Cable
26x Extra Links
2x CGX-SL Brake Housing Segment, 300mm
2x Open Alloy End Caps
2x Adapter End Caps to 5mm Housing Stop
2x Adapter End Caps to 5mm Brake Housing
2x Cable Tips
7x Mini Tube Tops
3x Cable Donuts
2x Rotating Hooks
